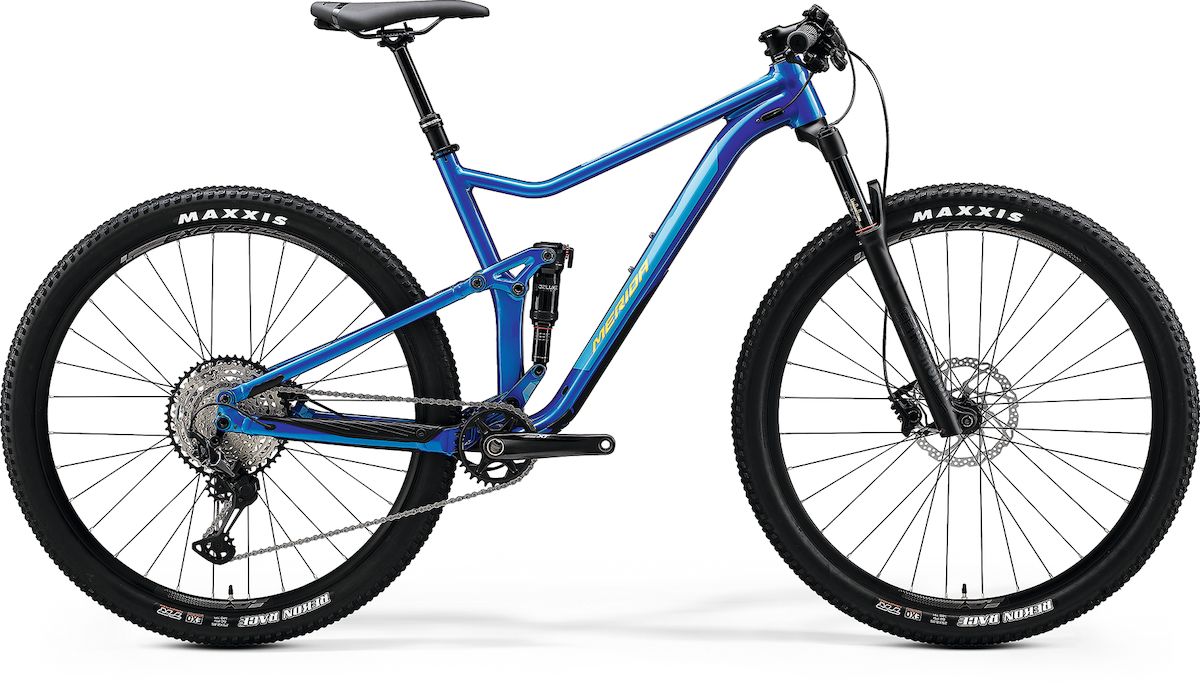

Rahmen: ONE-TWENTY RC LITE

* 100mm suspension travel * material: aluminium * 29 wheelsize * 148x12mm axle standard * BB92 bottom bracket standard

Federbein: Rock Shox Deluxe Select+

* lockout

Remote-Hebel: RM ONELOC SPRINT RIGHT FORK

Gabel: Rock Shox Reba RL

* Air * 120mm suspension travel * Tapered * remote lockout * 51mm fork offset

Vorderradbremse: Shimano MT-500

* 2 piston

Hinterradbremse: Shimano MT-500

* 2 piston

Bremsscheibe vorn: Shimano RT54

* 180 mm

Bremsscheibe hinten: Shimano RT54

* 180 mm

Kette: Shimano SLX

Kettenblatt: Shimano XT

* 32 teeth * 170 mm-S, 175 mm-M up

Kurbelgarnitur: 170 mm-S, 175 mm-M up

Innenlager: Shimano BB71-41A pressfit

Schaltwerk: Shimano XT M8100 Shadow+

Kassette: Shimano M7100

* 10-51 teeth * 12 speed

Griffe: MERIDA COMP EC

Lenker: MERIDA EXPERT CC

* material: aluminium * 740mm width * flat

Vorbau: MERIDA EXPERT CC

* material: aluminium * 31.8mm diameter * -6° stem angle * 70 mm all sizes

Steuersatz: FSA NO.47/50

Kompressor: AL cap with STS bolt+ ST stop nut

Vorderradnabe: Shimano SLX

* 110x15mm width front hub * 32 spoke holes * Centerlock

Hinterradnabe: Shimano SLX

* 148x12mm width rear hub, 32 spoke holes * Centerlock

Hinterachse: MERIDA COMP TR

Felge: MERIDA EXPERT CC

* 22.8mm inner width * material: aluminium * Tubeless ready (tubeless tape and valves not included)

Sattel: MERIDA COMP CC

Sattelstütze: MERIDA COMP TR

* 30.9mm diameter * 0mm setback * S: 100mm travel seatpost - M/L/XL 125mm travel seatpost

Schalthebel hinten: Shimano XT

Vorderreifen: Maxxis Rekon Race

* 29x2.35" * fold * TR EXO

Hinterreifen: Maxxis Rekon Race

* 29x2.35" * fold * TR EXO

Schutzbleche: MERIDA MTB lite-front

Zubehör: MERIDA Multitool with saddlebox

Gewicht: 13.76

weighed at frame size L and 29" wheels without pedals
