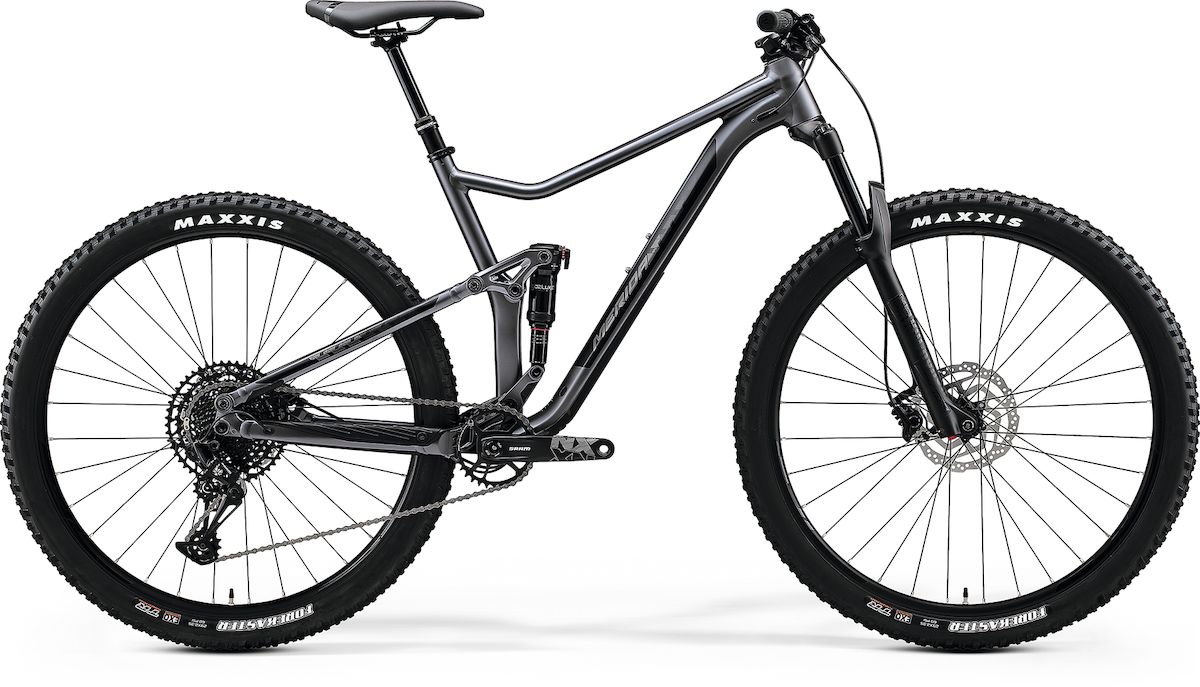

Rahmen: ONE-TWENTY LITE

* 120mm suspension travel * material: aluminium * 29 wheelsize * 148x12mm axle standard * BB92 bottom bracket standard

Federbein: Rock Shox Deluxe Select+

* lockout

Gabel: Rock Shox Sektor RL

* Air 130mm suspension travel * Tapered * 42mm fork offset

Vorderradbremse: Shimano MT-500

* 2 piston

Hinterradbremse: Shimano MT-500

* 2 piston

Bremsscheibe vorn: Shimano RT10

* 180 mm

Bremsscheibe hinten: Shimano RT10

* 180 mm

Kette: Sram NX Eagle

Kettenblatt: Sram NX Eagle

* 32 teeth * 170 mm-S, 175 mm-M up

Kurbelgarnitur: 170 mm-S, 175 mm-M up

Innenlager: Sram BB DUB PF MTB 92

Schaltwerk: Sram NX Eagle

Kassette: Sram PG-1230 Eagle

* 11-50 teeth * 12 speed

Griffe: MERIDA COMP EC

Lenker: MERIDA EXPERT TR

* material: aluminium * 760mm width * 20mm rise

Vorbau: MERIDA EXPERT TR

* material: aluminium * 35mm diameter * 0° stem angle * 50 mm all sizes

Steuersatz: FSA NO.47/50

Kompressor: AL cap with STS bolt+ ST stop nut

Vorderradnabe: Shimano MT400-B

* 110x15mm width front hub * 32 spoke holes * Centerlock

Hinterradnabe: Shimano MT400-B

* 148x12mm width rear hub * 32 spoke holes * Centerlock

Hinterachse: MERIDA COMP TR

Felge: MERIDA EXPERT TR

* 29mm inner width * material: aluminium * Tubeless ready (tubeless tape and valves not included)

Sattel: MERIDA COMP CC

Sattelstütze: MERIDA COMP TR

* 30.9mm diameter * 0mm setback * S: 100mm travel seatpost - M/L/XL 125mm travel seatpost

Schalthebel hinten: Sram NX Eagle

Vorderreifen: Maxxis Forekaster

* 29x2.35" * fold * TR EXO Dual

Hinterreifen: Maxxis Forekaster

* 29x2.35" * fold * TR EXO Dual

Gewicht: 14.64

weighed at frame size L and 29" wheels without pedals
