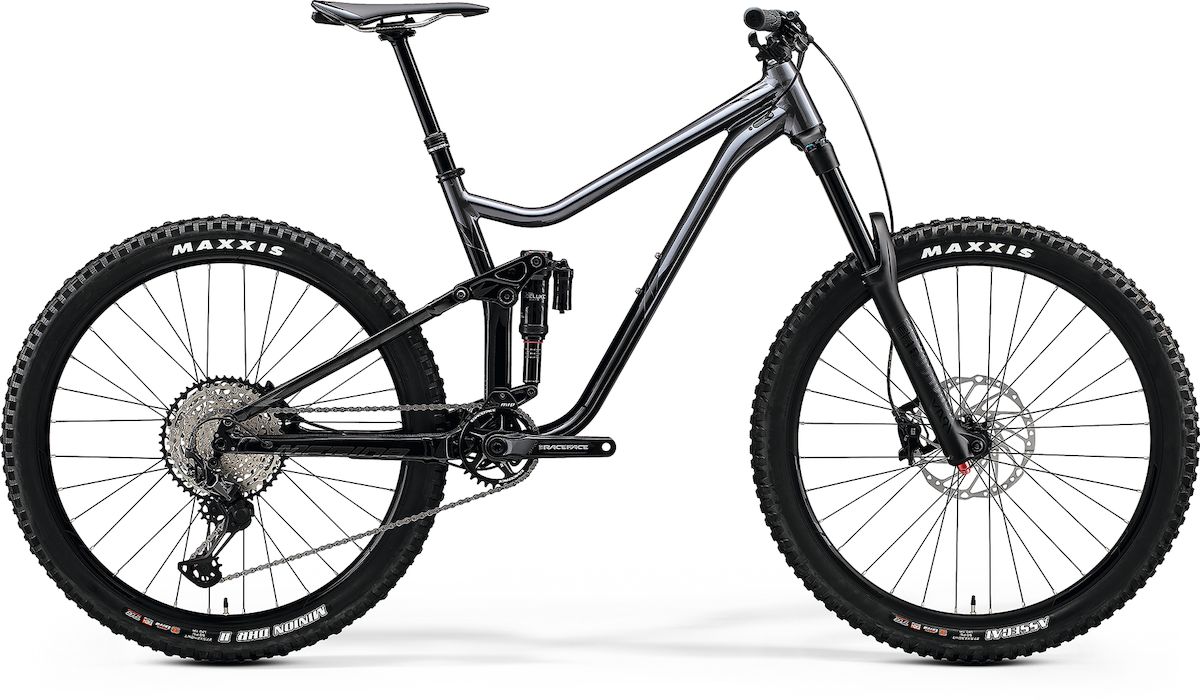

Rahmen: ONE-SIXTY LITE

* 165mm suspension travel * material: aluminium * 27.5 wheelsize * 148x12mm axle standard * BB92 bottom bracket standard

Federbein: Rock Shox Super Deluxe Select+

* platform

Gabel: Rock Shox Yari RC

* Air * 170mm suspension travel * Tapered * 37mm fork offset

Vorderradbremse: Shimano SLX M7120

* 4 piston

Hinterradbremse: Shimano SLX M7120

* 4 piston

Bremsscheibe vorn: Shimano RT64

* 200 mm

Bremsscheibe hinten: Shimano RT64

* 180 mm

Kette: Shimano SLX

Kettenschutz: MRP 1X CS

Kettenblatt: Race Face Aeffect

* 32 teeth * 170 mm-S up

Kurbelgarnitur: 170 mm-S up

Innenlager: BB, BB92– Ø30mm, Double Row,Ext. Seal

Schaltwerk: Shimano XT M8100 Shadow+

Kassette: Shimano M7100

* 10-51 teeth * 12 speed

Griffe: MERIDA EXPERT EC

Lenker: MERIDA EXPERT TR

* material: aluminium * 780mm width * 20mm rise

Vorbau: MERIDA EXPERT TR

* material: aluminium * 35mm diameter * 0° stem angle * 40 mm all sizes

Steuersatz: FSA NO.57/55E neck

Kompressor: AL cap with STS bolt+ ST stop nut

Vorderradnabe: Shimano SLX

* 110x15mm width front hub * 32 spoke holes * Centerlock

Hinterradnabe: Shimano SLX

* 148x12mm width rear hub, 32 spoke holes * Centerlock

Hinterachse: MERIDA COMP TR

Felge: MERIDA EXPERT TR

* 29mm inner width * material: aluminium * Tubeless ready (tubeless tape and valves not included)

Sattel: MERIDA EXPERT CC

Sattelstütze: MERIDA EXPERT TR

* 30.9mm diameter * 0mm setback * S: 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost

Schalthebel vorn: Shimano SL -MT800-IL

Schalthebel hinten: Shimano XT

Vorderreifen: Maxxis Assegai

* 27.5x2.5" * fold * TR EXO+ 3C MaxxTerra

Hinterreifen: Maxxis Minion DHR II

* 27.5x2.4" * fold * TR EXO+ 3C MaxxTerra

Schutzbleche: MERIDA MTB lite-front

Zubehör: MERIDA Multitool with saddlebox

Gewicht: 14.81

weighed at frame size M and 27.5" wheels without pedals
