- Rahmen: MISSION CX LITE
- * material: aluminium
* 700C wheelsize
* 100x12/ 142x12mm axle standard
* BB86 bottom bracket standard
- Gabel: MISSION CX CF3
- Bremshebel: Shimano Ultegra
- Vorderradbremse: Shimano Ultegra
- * Hydraulic disc
- Hinterradbremse: Shimano Ultegra
- * Hydraulic disc
- Bremsscheibe vorn: Shimano RT54
- * 160mm
- Bremsscheibe hinten: Shimano RT54
- * 160mm
- Kette: KMC X11
- Kettenblatt: Shimano Ultegra
- * 46-36 teeth
* 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
- Kurbelgarnitur: 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
- Innenlager: Shimano Pressfit BB71
- Umwerfer: Shimano Ultegra
- Schaltwerk: Shimano Ultegra
- * GS
- Kassette: Shimano CS-R7000
- * 11-30 teeth
* 11 speed
- Griffe: MERIDA ROAD EXPERT
- Lenker: MERIDA EXPERT SL
- * material: aluminium
- Vorbau: MERIDA EXPERT CC
- * material: aluminium
* 31.8mm diameter
* -5° stem angle
* 80 mm-XS/S, 90 mm-M/L, 100 mm-XL
- Steuersatz: MERIDA M2331 Neck
- Kompressor: SL18
- Vorderradnabe: VP CLK170F
- * 100x12mm width front hub
* 28 spoke holes, Centerlock
- Hinterradnabe: VP CLK270R
- * 142x12mm width rear hub
* 28 spoke holes
* Centerlock
- Vorderachse: Fulchee FH1200BK001 12-100
- Hinterachse: Fulchee FH1700BK002 12-142
- Felge: MERIDA EXPERT CX
- * 19mm inner width
* 24mm height
- Sattel: MERIDA EXPERT CC
- Sattelstütze: MERIDA EXPERT CC
- * material: carbon
* 27.2mm diameter
* 15mm setback
- Schalthebel vorn: Shimano Ultegra disc
- Schalthebel hinten: Shimano Ultegra disc
- Vorderreifen: Maxxis All Terrane
- * 700x33C
* fold
* tubless compatible
- Hinterreifen: Maxxis All Terrane
- * 700x33C
* fold
* tubless compatible
- Zubehör: MERIDA Multitool with saddlebox
- Gewicht: 9.25
- weighed at frame size M without pedals

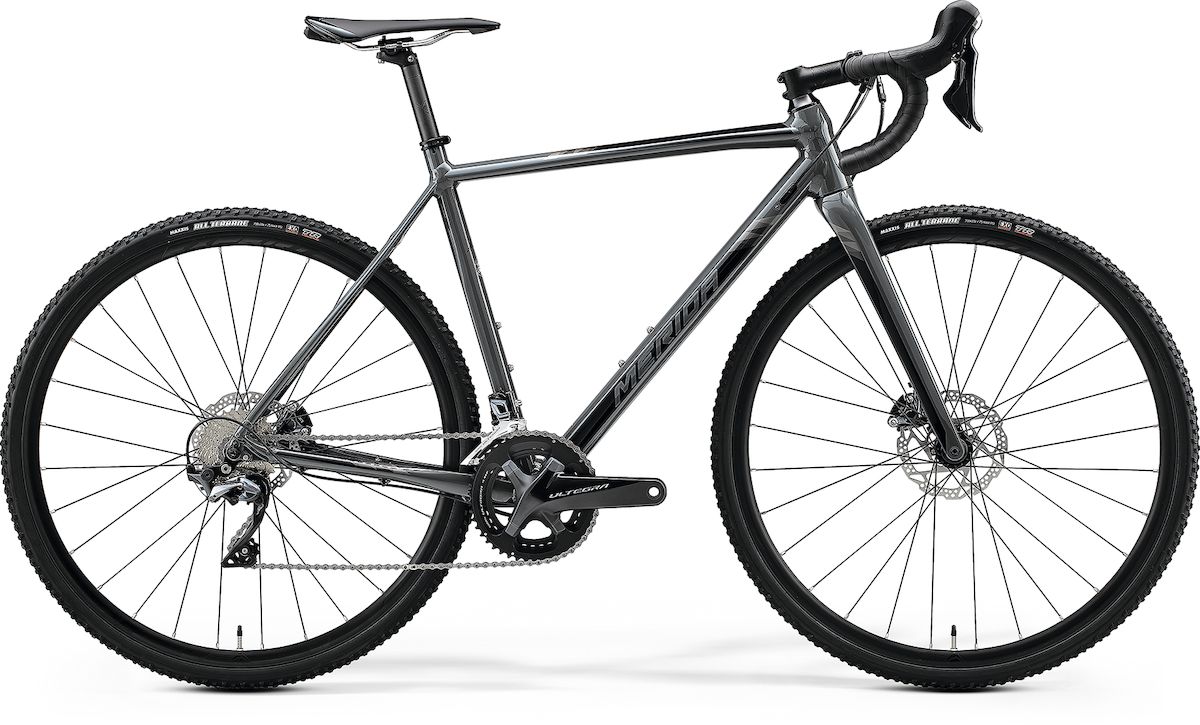

Das MISSION CX 700 HP2 grau/schwarz auf www.MERIDA-BIKES.de ansehen.
