Weitere Informationen zu diesem Artikel finden Sie auf der
Homepage des Herstellers.
- material: carbon
- 700x45C max.WHS
- 100x12/142x12mm axle standard
- BSA bottom bracket standard
Rahmengrössen XXS, XS, S, M, L, XL

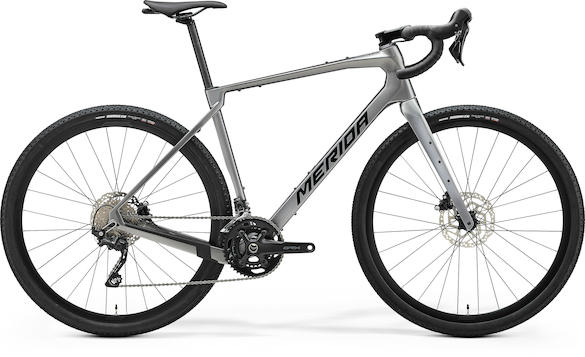

Farbe GUN METAL GREY (BLACK/TITAN)
- Tapered
- material: carbon
- 700x47C max. wheelsize
Schaltwerk Shimano GRX400
- 46-30 teeth
- 170 mm (XS/S), 172,5 mm (M), 175 mm (L/XL)
Schalthebel Shimano GRX400
- Hydraulic disc
- 180mm
Bremshebel Shimano GRX400
Steuersatz Acros ICR MERIDA EXTERNAL neck w/diecast splitring
Spacer 2*10mm, 1*2.5mm
Griffe MERIDA ROAD Expert
- 11-36 teeth
- 10 speed
- 23mm inner width
- 25mm height
- material: aluminium
- hookless
- Tubeless ready (tubeless tape and valves not included)
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 12-142mm width rear hub
- 28 spoke holes
- Centerlock
- including removable lever
- 6/4mm allen key
Speichen Black stainless
- 700x45C
- fold
- TR
- EXO
Kette KMC X10
Umwerfer Shimano GRX400
- 27.2mm diameter
- 15mm setback
- Carbon
- 28% recycled material
- V-mount
Sattelklemme MERIDA EXPERT
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Zulässiges Gesamtgewicht 120 kg
| Rahmengröße | XXS | XS | S | M | L | XL |
| Laufradgröße | 28" | 28" | 28" | 28" | 28" | 28" |
| ST Sitzrohrlänge (mm) | 410 | 440 | 470 | 500 | 530 | 560 |
| TT Oberrohrlänge (mm) | 530 | 550 | 565 | 580 | 600 | 620 |
| CS Hinterbaulänge (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| HTA Steuerrohrwinkel (°) | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| STA Sitzrohrwinkel effektiv (°) | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| BD Tretlagerabsenkung (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| HT Steuerrohrlänge (mm) | 110 | 130 | 150 | 170 | 190 | 210 |
| FL Gabeleinbaulänge (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| R Reach (mm) | 378 | 392 | 402 | 412 | 426 | 441 |
| S Stack (mm) | 549 | 570 | 588 | 607 | 626 | 645 |
| WB Radstand (mm) | 1031 | 1048 | 1065 | 1082 | 1104 | 1126 |
| SH Überstandshöhe (mm) | 707 | 734 | 771 | 798 | 825 | 852 |
