- material: aluminium
- 29x2.4" max. wheelsize
- 148x12mm axle standard
- BSA bottom bracket standard
Rahmengrössen S, M, L, XL, XXL

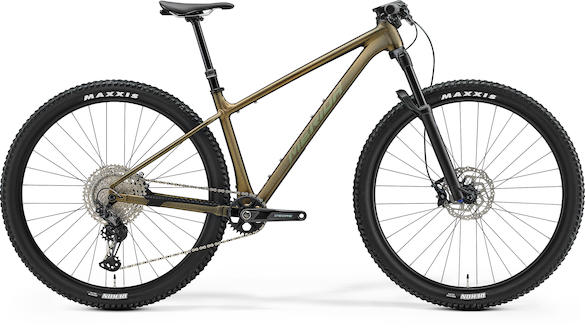

Farbe SILK SPARKLING GOLD (GREEN/BLACK)
- Air
- 120mm suspension travel
- Tapered
- 44 mm fork offset
- 32 teeth
- 170 mm (S), 175 mm-M up
Schalthebel Shimano Deore M6100
- 180mm
- Upper and lower IPS sealing
Spacer 1*10mm, 1*5mm, 1*2.5mm
Griffe MERIDA COMP EC
- 10-51 teeth
- 12 speed
- 25mm inner width
- material: aluminium
- tubeless ready
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub
- 32 spoke holes
- Centerlock
- including removeable lever, 6/4mm allen key
Speichen Double Butted Black stainless
- 29x2.4"
- wire
Kette KMC X12
- 30.9mm diameter
- 0mm setback
- XS 100mm travel seatpost : S 125mm travel seatpost : M 150mm travel seatpost : L/XL 170mm travel seatpost
- 6% recycled and 23% nature material
- V-mount
- incl. MERIDA minitool
Sattelklemme MERIDA EXPERT
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Zulässiges Gesamtgewicht 135 kg
| Rahmengröße | S | M | L | XL | XXL |
| Laufradgröße | 29" | 29" | 29" | 29" | 29" |
| ST Sitzrohrlänge (mm) | 380 | 410 | 440 | 470 | 500 |
| TT Oberrohrlänge (mm) | 594 | 614 | 637 | 659 | 681 |
| CS Hinterbaulänge (mm) | 430 | 430 | 430 | 430 | 430 |
| HTA Steuerrohrwinkel (°) | 66.9 | 66.9 | 66.9 | 66.9 | 66.9 |
| STA Sitzrohrwinkel effektiv (°) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| BD Tretlagerabsenkung (mm) | 57 | 57 | 57 | 57 | 57 |
| HT Steuerrohrlänge (mm) | 95 | 95 | 105 | 115 | 125 |
| FL Gabeleinbaulänge (mm) | 530 | 530 | 530 | 530 | 530 |
| R Reach (mm) | 420 | 440 | 460 | 480 | 500 |
| S Stack (mm) | 614 | 614 | 624 | 633 | 643 |
| WB Radstand (mm) | 1132 | 1152 | 1176 | 1199 | 1223 |
| SH Überstandshöhe (mm) | 712 | 713 | 715 | 723 | 758 |
