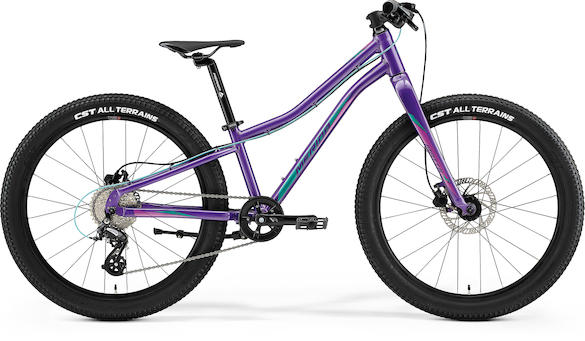

| Modell | MATTS J. 24+ HP3 |
| Farbe | Lila/Pink |
| Rahmen | MATTS J. 24+- material: aluminium
|
| (Feder-)gabel | MERIDA MATTS J. 24+- material: aluminium
|
| Bremse (V/H) | Tektro HD-M275- 2 piston |
| Bremsscheibe (V/H) | Tektro- 160mm/140mm |
| Kurbelgarnitur | MERIDA EXPERT JR- 28 teeth
|
| Gänge | 1 x 8 |
| Schalthebel hinten | Altus |
| Schaltwerk | Shimano RD-M310 |
| Kassette | Sunrace CSM668- 11-34 teeth
|
| Kette | Sunrace M84 |
| Lenker | MERIDA EXPERT JR- material: aluminium
|
| Griffe | MERIDA EXPERT JR |
| Vorbau | MERIDA EXPERT CC- material: aluminium
|
| Steuersatz | VP Z104AE |
| Sattel | MERIDA EXPERT JR |
| Sattelstütze | MERIDA CC- material: aluminium
|
| Reifen (V/H) | CST Jet C1820- 24x2.4"
|
| Nabe (V/H) | Joytech D761DSE/Joytech D762TSE- 100x9mm width front hub
|
| Felge (V/H) | MERIDA JR 24+- material: aluminium |
| Innenlager | Bearing cartridge |
| Pedale | Marwi SP-202 |
| Parkstütze | center type alloy |
| Gewicht | 10,4 kgweighed with 24" wheels and at frame size UNI, without pedals |
