Weitere Informationen zu diesem Artikel finden Sie auf der
Homepage des Herstellers.
- material: aluminium
- 150mm suspension travel
- 27.5x2.8" max. wheelsize
- 148x12mm axle standard
- intube
Rahmengrössen XS, S, M, L, XL

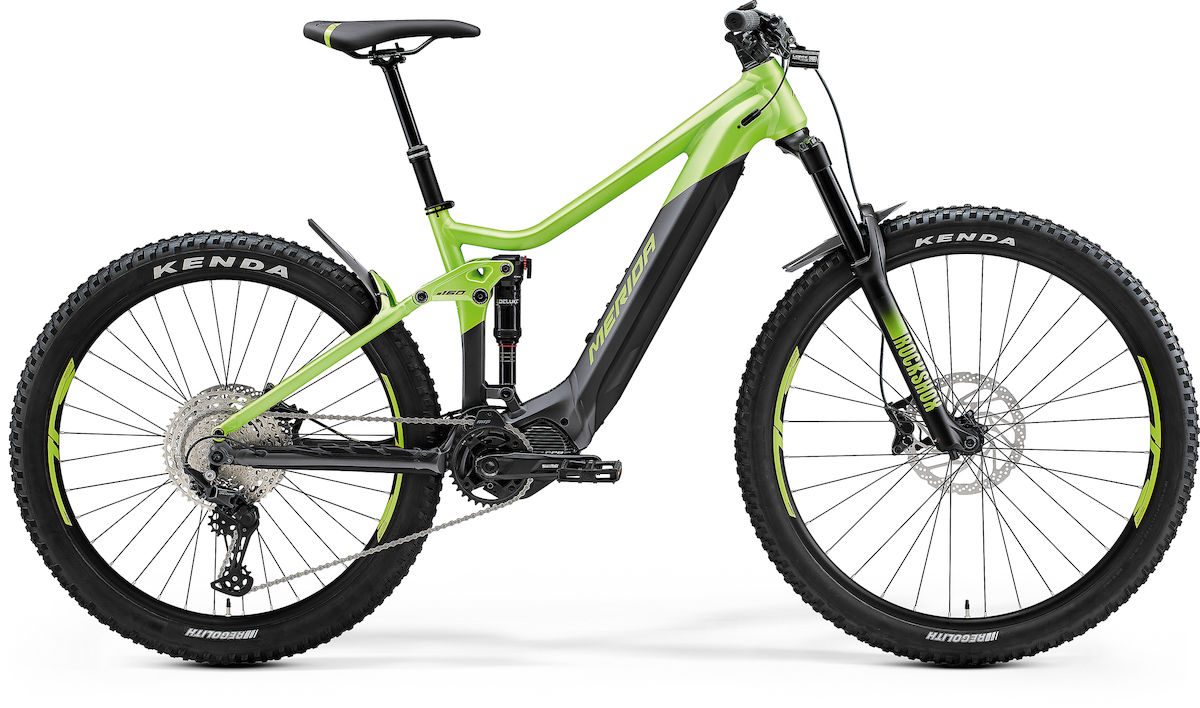

Farbe SILK GREEN (BLACK)
- Air
- 160mm suspension travel
- Tapered
- 51mm fork offset
- 29x2.8" max wheelsize
- platform
- 34 teeth
Schaltwerk Shimano Deore RDM5100 11
- 165mm
Schalthebel Shimano SL -MT500-IL / Shimano Deore M5100 11
- 4 piston
Steuersatz MERIDA-8152
Spacer ACS92, 5mm*3
Griffe MERIDA EXPERT EC
Schalthebelklemme JAGWIRE FLEX-SL:CP
- 11-51 teeth
- 11 speed
- 29mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub
- 36 spoke holes
- Centerlock
- including removeable lever, 6/4mm allen key
Speichen Black stainless
- 29x2.4"
- wire
- 27.5x2.6"
- wire
Kette KMC e11S EPT
Pedale VP VPE-537
- 30.9mm diameter
- 0mm setback
- XS/S 100mm travel seatpost - M/L 125mm travel seatpost - XL 150mm travel seatpost
- V-mount
Sattelklemme MERIDA EXPERT clamp
Schutzbleche C093-02F + C093-02R
Scheinwerfer LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Rücklicht USB REAR Light CG-214RG
- 85Nm
- 630Wh Shimano EN805 504Wh for XS only
Display Shimano SC-EN600
Switch Shimano SW-EN600-L
| Rahmengröße | XS | S | M | L | XL |
| Laufradgröße | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST Sitzrohrlänge (mm) | 405 | 415 | 430 | 450 | 470 |
| TT Oberrohrlänge (mm) | 563 | 584 | 605 | 626 | 647 |
| CS Hinterbaulänge (mm) | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA Steuerrohrwinkel (°) | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| STA Sitzrohrwinkel effektiv (°) | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| BD Tretlagerabsenkung (mm) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| HT Steuerrohrlänge (mm) | 110 | 115 | 120 | 125 | 130 |
| FL Gabeleinbaulänge (mm) | 571 | 571 | 571 | 571 | 571 |
| R Reach (mm) | 400 | 420 | 440 | 460 | 480 |
| S Stack (mm) | 633 | 633 | 638 | 642 | 647 |
| WB Radstand (mm) | 1170 | 1190 | 1212 | 1234 | 1256 |
| SH Überstandshöhe (mm) | 737 | 736 | 733 | 739 | 753 |
Angaben zur Produktsicherheit
Hersteller:
MERIDA INDUSTRY CO., LTD., P.O. Box 56, Yuanlin, Taiwan R.O.C.
Kontakt: www.merida-bikes.com
Verantwortliche Person:
MERIDA & CENTURION Germany GmbH, Blumenstraße 49-51, 71106 Magstadt, Deutschland
Kontakt: www.mcg-parts.de
