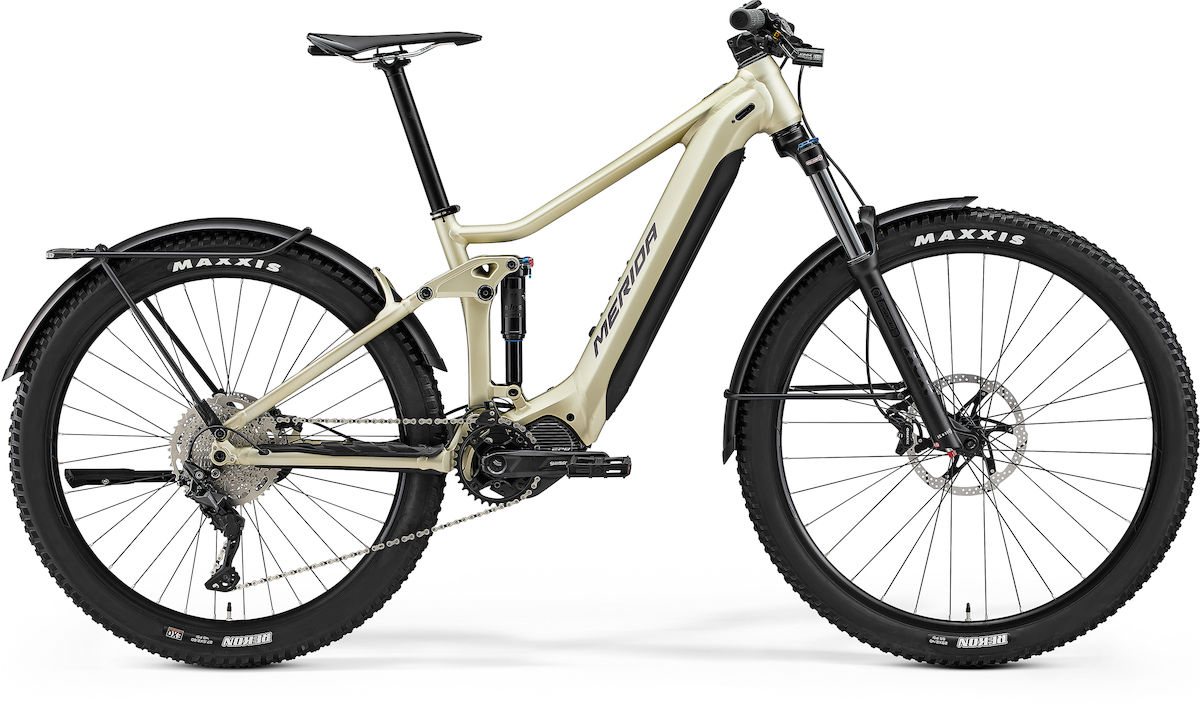

| Modell + HP/EP | eONE-FORTY 400 EQ EP2 |
| Farbe (Herstellerbezeichnung) | SILK CHAMPAGNE |
| Rahmen | eONE-FORTY LITE III- material: aluminium
|
| Motor | Shimano EP8- 85Nm |
| Display | Shimano SC-E5003 |
| Batterie | Shimano E8036 630Wh / Shimano E8035 504Wh for S only |
| Ladegerät | Shimano EC-E6002- 2A charging current |
| Gabel | Suntour XCR34 LOR DS- Air Boost
|
| Dämpfer | SUNTOUR RS-EDGE-TR-LO-R8-M6- lockout |
| Bremse vorn | TEKTRO HD-M745- 4 piston |
| Bremse hinten | TEKTRO HD-M745- 4 piston |
| Bremsscheibe vorn | TR-25- 203 mm |
| Kettenblatt | Shimano CRE70-B- 34 teeth
|
| Kurbelgarnitur | Shimano FCEM600- 165 mm for all sizes |
| Schalthebel hinten | Shimano Deore M5120- SGS |
| Schaltwerk | Shimano Deore M5120- SGS |
| Kassette | Shimano M4100- 11-46 teeth
|
| Kette | KMC e10s |
| Lenker | MERIDA EXPERT eTR- 780mm width
|
| Griffe | MERIDA EXPERT EC |
| Vorbau | MERIDA EXPERT eTRII- material: aluminium
|
| Steuersatz | MERIDA-8152 |
| Sattel | MERIDA EXPERT CC- V-mount |
| Sattelstütze | MERIDA EXPERT CC- material: aluminium
|
| Vorderreifen | MAXXIS REKON- 29x2.4"
|
| Hinterreifen | MAXXIS REKON- 27.5x2.6"
|
| Nabe vorn | Shimano MT400-B- 110x15mm width front hub
|
| Nabe hinten | Shimano MT400-B- 148x12mm width rear hub
|
| Felge | MERIDA COMP TR- 29mm inner width
|
| Innenlager | included |
| Pedale | VP VPE-537 |
| Scheinwerfer | LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount |
| Rücklicht | Herrmans H-Cargo integrated in MERIDA MIK carrier |
| Gepäckträger | MERIDA MA006 |
| Schutzbleche | Fender:FA311-70A / 75E3 with SW803V-70 / 75, fender stay MA007, alloy rail |
| Ständer | Atranvelo ED-100-PC |
| Zuläss. Gesamtgewicht | 140 kg |
