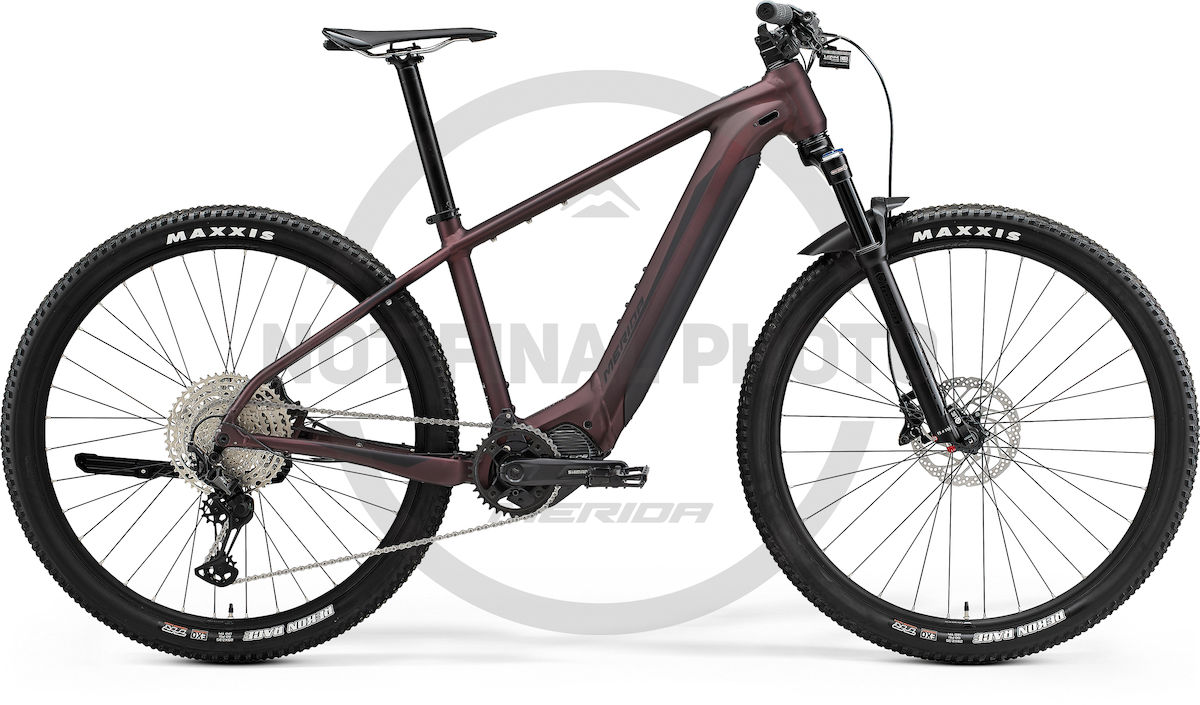

| Modell + HP/EP | eBIG.NINE 700 EP2 |
| Farbe (Herstellerbezeichnung) | MATT BURGUNDY RED |
| Rahmen | eBIG.NINE LITE III- material: aluminium
|
| Motor | Shimano EP8- 85Nm |
| Display | Shimano SC-E7000 |
| Batterie | Shimano E8036- 630Wh |
| Ladegerät | Shimano EC-E8004- 4A charging current |
| Gabel | Suntour RAIDON34 LOR- Air
|
| Bremse vorn | Shimano M4100- 4 piston |
| Bremse hinten | Shimano M4100- 4 piston |
| Bremsscheibe vorn | Shimano RT30- 180 mm |
| Kettenblatt | Shimano CRE70-12-B- 36 teeth
|
| Kurbelgarnitur | Shimano FCEM600- 165 mm for all sizes |
| Schalthebel hinten | Shimano XT RDM8100 Shadow+ 12 |
| Schaltwerk | Shimano XT RDM8100 Shadow+ 12 |
| Kassette | Shimano M6100- 10-51 teeth
|
| Kette | KMC e12T EPT |
| Lenker | MERIDA EXPERT eTR- 760mm width
|
| Griffe | MERIDA EXPERT EC |
| Vorbau | MERIDA EXPERT eTRII- material: aluminium
|
| Steuersatz | MERIDA-8157 |
| Sattel | MERIDA EXPERT CC- V-mount
|
| Sattelstütze | MERIDA EXPERT CC- material: aluminium
|
| Vorderreifen | Maxxis Rekon Race- 29x2.35"
|
| Hinterreifen | Maxxis Rekon Race- 29x2.35"
|
| Nabe vorn | Shimano SLX- 110x15mm width front hub
|
| Nabe hinten | Shimano SLX- 148x12mm width rear hub
|
| Felge | MERIDA COMP CC- 20mm inner width
|
| Innenlager | included |
| Pedale | VP VPE-527 |
| Scheinwerfer | LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount |
| Rücklicht | USB REAR Light CG-214RG |
| Ständer | CL-KA98, 29" |
| Zuläss. Gesamtgewicht | 140 kg |
