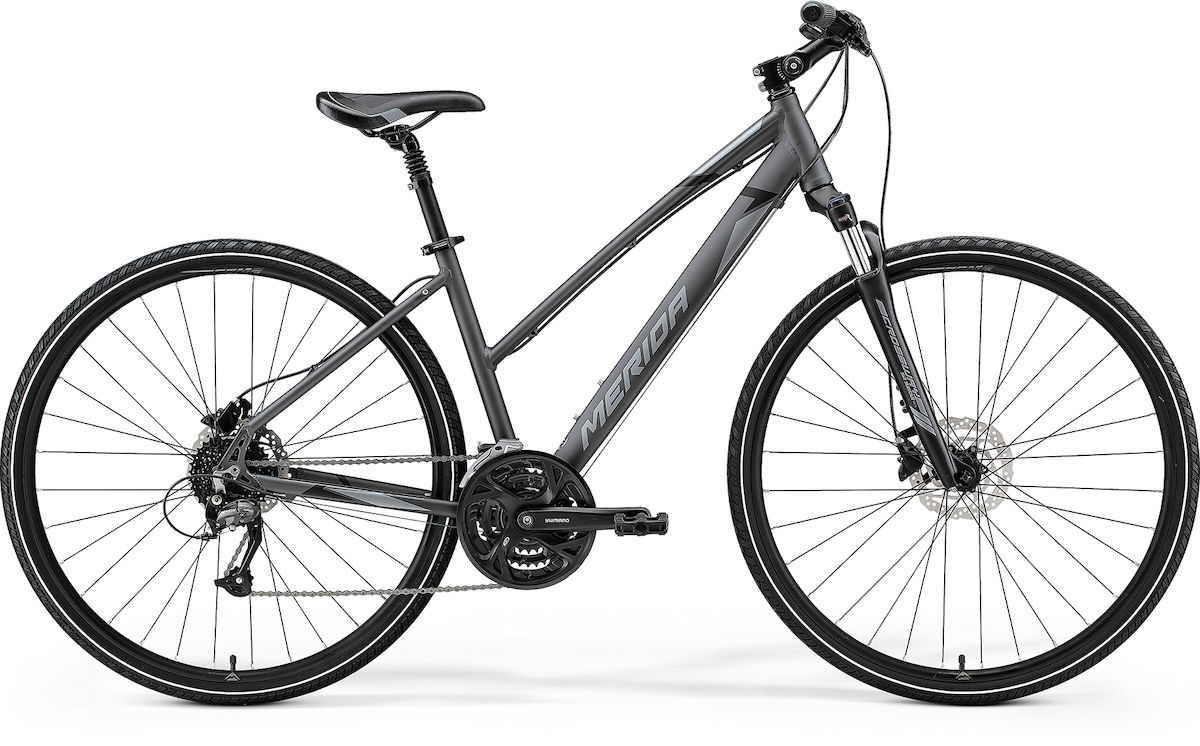

| Modell | CROSSWAY L 40 HP3 |
| Farbe | Anthrazit/Grau |
| Rahmen | CROSSWAY L SPEED- material: aluminium
|
| (Feder-)gabel | Suntour NEX HLO- Coil
|
| Bremse (V/H) | Shimano ST-EF505- BR-MT200 brake caliper |
| Bremsscheibe (V/H) | Shimano RT10- 160 mm |
| Kurbelgarnitur | Shimano FC-M371- 48-36-26 teeth
|
| Gänge | 2 x 9 |
| Schalthebel vorn | Shimano ST-EF505 |
| Schalthebel hinten | Shimano ST-EF505 |
| Schaltwerk | Shimano RD-M370 |
| Umwerfer | Shimano FD-M370 |
| Kassette | Shimano CS-HG200- 11-32 teeth
|
| Kette | KMC M99 |
| Lenker | MERIDA CC- material: aluminium
|
| Griffe | MERIDA EC |
| Vorbau | MERIDA TK- material: aluminium
|
| Steuersatz | FSA TH888/NO.10 |
| Sattel | MERIDA Cross Sport |
| Sattelstütze | MERIDA TK- 27.2mm diameter
|
| Reifen (V/H) | MERIDA K1171- 700x40C
|
| Nabe (V/H) | Shimano TX505- 100x9mm width front hub
|
| Felge (V/H) | MERIDA CC- 17mm inner width
|
| Innenlager | FSA TH-7420ST-W, Cartridge Bearing |
| Pedale | VP VPE-891 |
| Gewicht | 13,94 kgweighed with 700C wheels and at frame size S, without pedals |
