Weitere Informationen zu diesem Artikel finden Sie auf der
Homepage des Herstellers.
- material: aluminium
- 29x2.5" max. wheelsize
- 148x12 mm axle standard
- BSA bottom bracket standard
Rahmengrössen S, M, L, XL, XXL

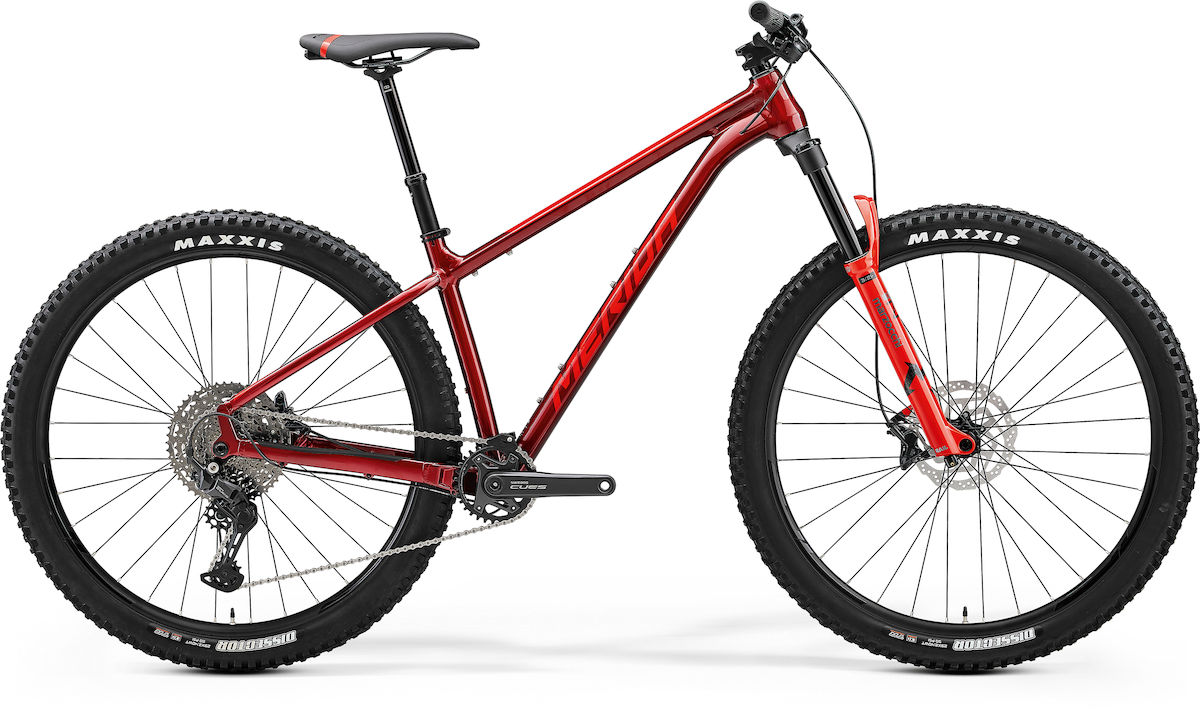

Farbe DARK STRAWBERRY (RACE RED)
- Air
- 140 mm suspension travel
- Tapered
- 44 mm fork offset
- 32 teeth
- 170 mm-S, 175 mm-M up
Schalthebel Shimano SL-MT500-IL / Shimano CUES U6000
- front 4 piston
- rear 2 piston
- 180 mm
Steuersatz MERIDA M2331
Spacer 1*10 mm,2* 5 mm
Griffe MERIDA COMP EC
- 11-50 teeth
- 11 speed
- 29 mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 110x15 mm width front hub
- 32 spoke holes
- Centerlock
- 148x12 mm width rear hub
- 32 spoke holes
- Centerlock
- including removeable lever, 6/4 mm allen key
Speichen Black stainless
- 29x2.4"
- fold
- TR EXO Dual
Kette Shimano LG500
- 30.9 mm diameter
- 0 mm setback
- S: 125 mm travel seatpost - M/L: 150 mm travel seatpost - XL/XXL 175 mm travel seatpost
- V-mount
- incl. MERIDA minitool
Sattelklemme MERIDA EXPERT
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
- Total weight of bike, rider and luggage
| Rahmengröße | S | M | L | XL | XXL |
| Laufradgröße | 29" | 29" | 29" | 29" | 29" |
| ST Sitzrohrlänge (mm) | 380 | 410 | 430 | 450 | 470 |
| TT Oberrohrlänge (mm) | 579 | 600 | 622 | 645 | 670 |
| CS Hinterbaulänge (mm) | 435 | 435 | 435 | 435 | 435 |
| HTA Steuerrohrwinkel (°) | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| STA Sitzrohrwinkel effektiv (°) | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| BD Tretlagerabsenkung (mm) | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| HT Steuerrohrlänge (mm) | 95 | 100 | 110 | 120 | 120 |
| FL Gabeleinbaulänge (mm) | 550 | 550 | 550 | 550 | 550 |
| R Reach (mm) | 415 | 435 | 455 | 475 | 500 |
| S Stack (mm) | 636 | 641 | 650 | 659 | 659 |
| WB Radstand (mm) | 1150 | 1172 | 1196 | 1220 | 1245 |
| SH Überstandshöhe (mm) | 716 | 723 | 725 | 728 | 730 |
