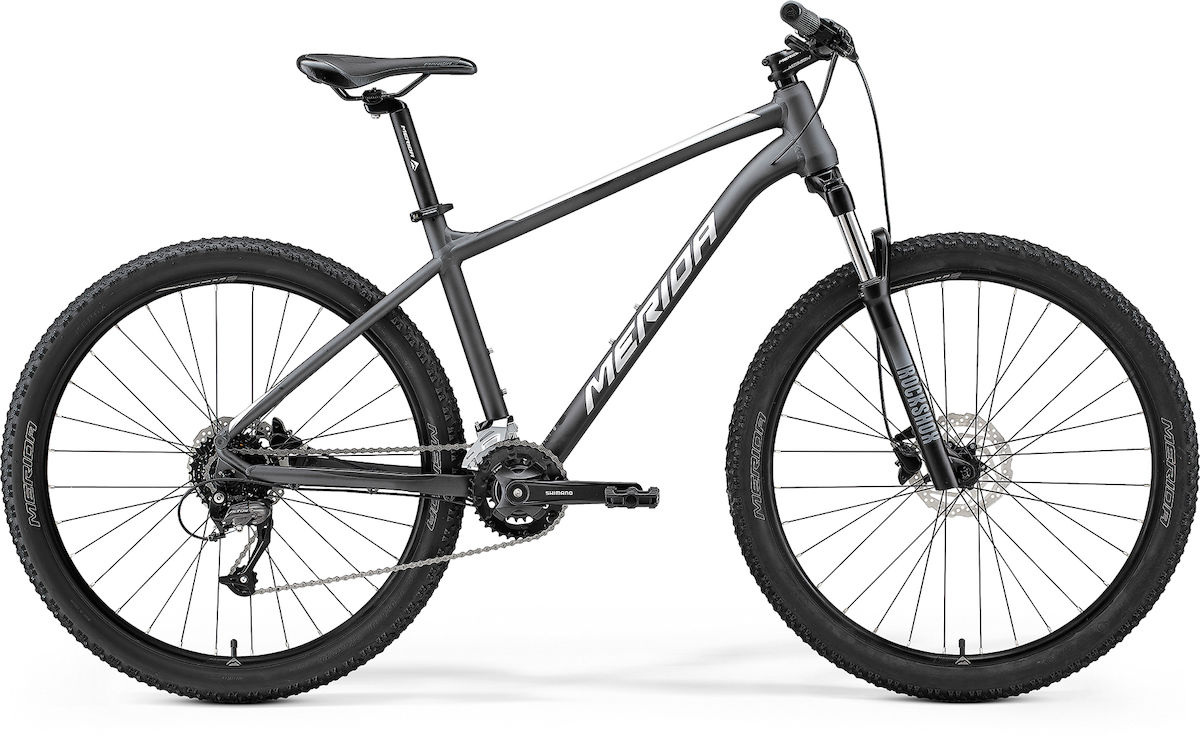

BIG.SEVEN 60 HP1 anthrazit/silber

MERIDA

Modell	BIG.SEVEN 60-2x HP1
Farbe	Anthrazit/Silber
Rahmen	BIG.SEVEN TFS III - material: aluminium - 27.5x2.25" max. wheelsize - 135x9mm axle standard - BSA bottom bracket standard
(Feder-)gabel	Rock Shox Judy TK - Coil - 100mm suspension travel Lockout - 42mm fork offset - 27.5x2.25" max. wheelsize
Bremse (V/H)	Shimano ST-EF505 - BR-MT200 brake caliper
Bremsscheibe (V/H)	Shimano RT10 - 160 mm
Kurbelgarnitur	Shimano MT101-2 - 36-22 teeth - 170 mm-XS/S, 175 mm-M/L
Gänge	2 x 9
Schalthebel vorn	Shimano ST-EF505-2L
Schalthebel hinten	Shimano ST-EF505
Schaltwerk	Shimano RD-M370
Umwerfer	Shimano FD-M2020-TS [2s]
Kassette	Shimano CS-HG200 - 11-32 teeth - 9 speed
Kette	KMC M99
Lenker	MERIDA CC - material: aluminium - 690mm width - 15mm rise
Griffe	MERIDA EC
Vorbau	MERIDA CC - material: aluminium - 31.8mm diameter - 6° stem angle - 70 mm-XS/S, 80 mm-M, 90 mm-L
Steuersatz	MERIDA M2345
Sattel	MERIDA Sport comfort
Sattelstütze	MERIDA CC - material: aluminium - 30.9mm diameter - 15mm setback
Reifen (V/H)	MERIDA K1080 - 27.5x2.2" - wire
Nabe (V/H)	Shimano TX505 - 100x9mm width front hub - 32 spoke holes - Centerlock - 135x9mm width rear hub - 32 spoke holes - Centerlock
Felge (V/H)	MERIDA CC - 17mm inner width - material: aluminium
Innenlager	Shimano BB-UN100
Pedale	VP VPE-891
Gewicht	13,7 kg weighed with 27.5" wheels and at frame size M, without pedals

Alle Produktinfos

Artikelnr: 82262730

Größe: XS (13.5) Farbe: Anthrazit/Silber VE: 1 Stk.
EAN/UPC: 4710949814748
Herstellernr: 6110934059

empf. VK: 849,00 €

Artikelnr: 82262740

Größe: S (15) Farbe: Anthrazit/Silber VE: 1 Stk.
EAN/UPC: 4710949814731
Herstellernr: 6110934060

empf. VK: 849,00 €

Artikelnr: 82262750

Größe: M (17) Farbe: Anthrazit/Silber VE: 1 Stk.
EAN/UPC: 4710949807542
Herstellernr: 6110934071

empf. VK: 849,00 €
