- Rahmen: BIG.NINE CF5
- * material: carbon * 29 wheelsize * 148x12mm axle standard * BB92 bottom bracket standard
- Remote-Hebel: OneLoc
- Gabel: Rock Shox SID Ultimate
- * Air * 100mm suspension travel * Tapered * Remote lockout * 42mm fork offset
- Vorderradbremse: Sram G2 RSC
- * 2 piston
- Hinterradbremse: Sram G2 RSC
- * 2 piston
- Bremsscheibe vorn: Sram Centerline X
- * 180 mm
- Bremsscheibe hinten: Sram Centerline X
- * 160 mm
- Kette: Sram XX1 Eagle
- Kettenblatt: Sram X01 Eagle SL
- * 34 teeth * 170 mm-S, 175 mm-M up
- Kurbelgarnitur: 170 mm-S, 175 mm-M up
- Innenlager: Sram BB DUB PF MTB 92
- Schaltwerk: Sram X01 Eagle
- Kassette: Sram XG-1295 Eagle
- * 10-50 teeth * 12 speed
- Griffe: MERIDA TEAM CC
- Lenker: MERIDA TEAM CC
- * material: carbon * 720mm width * flat
- Vorbau: MERIDA EXPERT CC
- * material: aluminium * 31.8mm diameter * -17° stem angle * S-70 mm, M-80 mm, L-90 mm, XL-100 mm, XXL-110 mm
- Steuersatz: FSA NO.47/50CF
- Kompressor: CF cap with Al bolt +SL01 stop nut set
- Hinterachse: MERIDA COMP TR
- Sattel: Prologo Scratch 2
- Sattelstütze: MERIDA TEAM CC
- * material: carbon * 30.9mm diameter * 0mm setback * S-Flex
- Schalthebel hinten: Sram X01 Eagle
- Vorderreifen: Maxxis Ikon
- * 29x2.2" * fold * 3C
- Hinterreifen: Maxxis Ikon
- * 29x2.2" * fold * 3C
- Flaschenhalter: Carbon BS319
- Laufradsatz: Reynolds TR 249
- * 110x15mm width front hub * 148x12mm width rear hub * 24mm inner width * Centerlock * Sram XD * material: carbon * Tubeless ready (tubeless tape and valves included)
- Gewicht: 9.01
- weighed at frame size M and 29" wheels without pedals

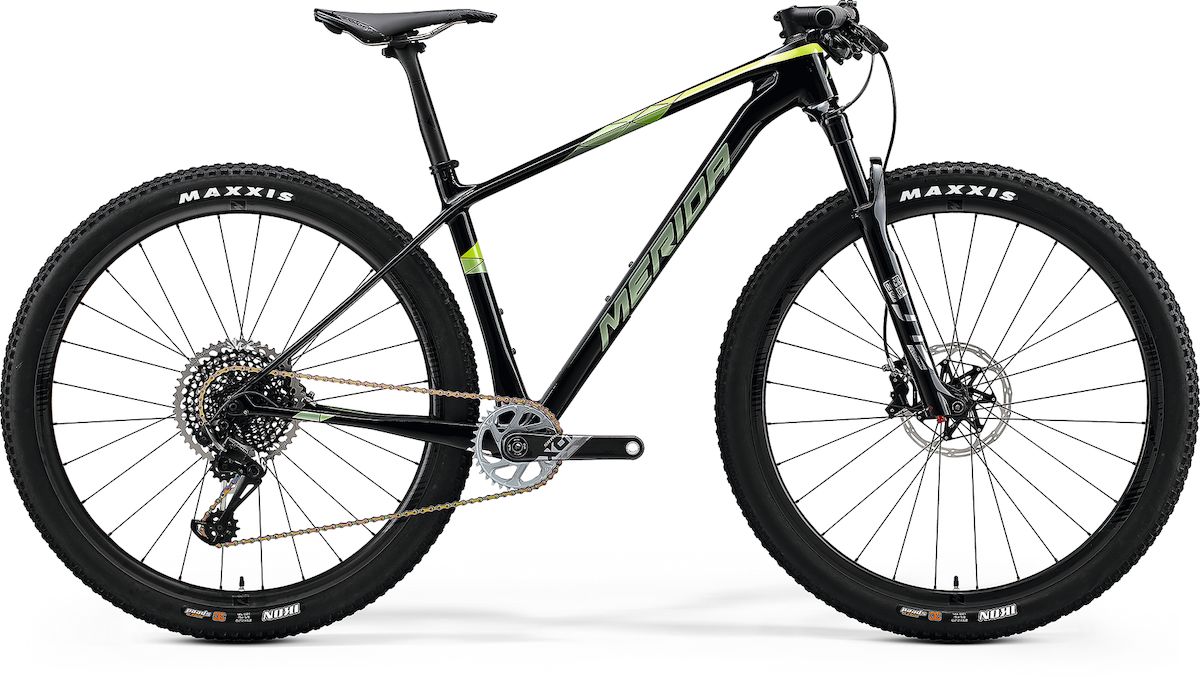

Das BIG.NINE 8000 HP1 carbon/grün auf www.MERIDA-BIKES.de ansehen.
