- material: carbon
- 700x45C max.WHS
- 100x12/142x12mm axle standard
- BSA bottom bracket standard
Rahmengrössen XXS, XS, S, M, L, XL

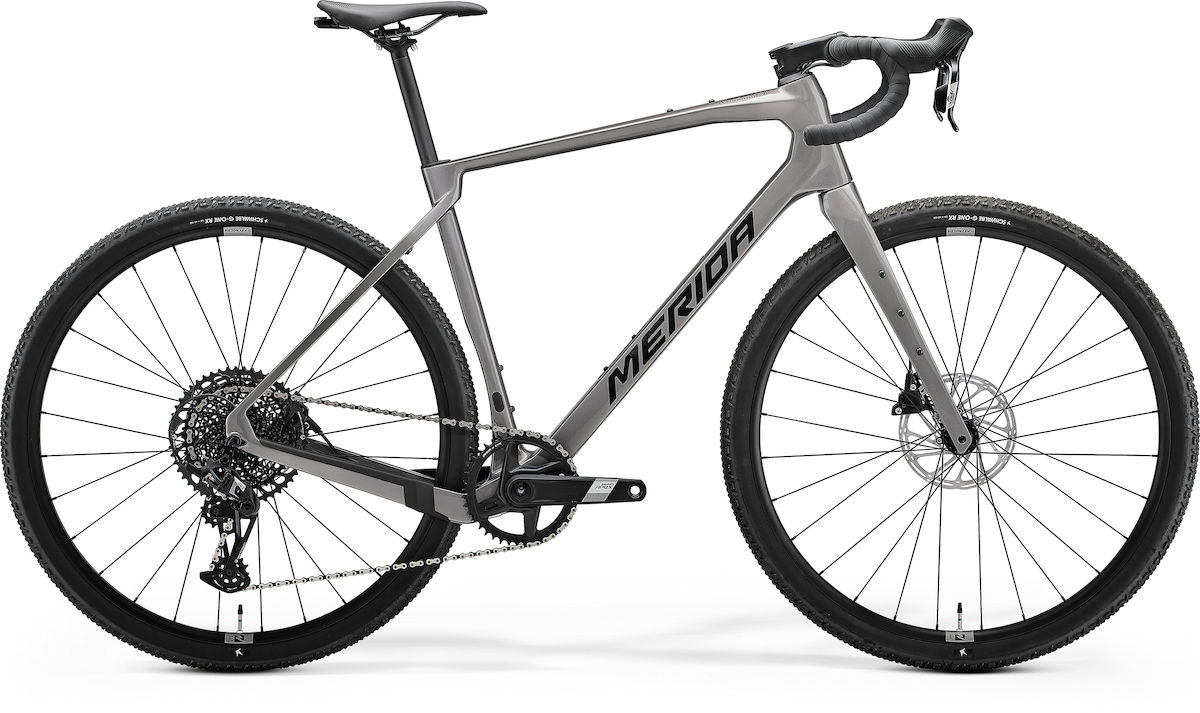

Farbe WARM SLATE GREY (BLACK)
- Tapered
- material: carbon
- 700x47C max. wheelsize
- mechanical
- 12 speed
- teeth 42
- MAT Aluminium
- 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL
- Hydraulic disc
- 2 piston
- Hydraulic
- 180mm
Bremshebel Sram Apex
Steuersatz Acros ICR MERIDA external neck w/diecast splitring
Spacer 2*10mm, 2*2.5mm
Griffe MERIDA ROAD EXPERT
- 10-52 teeth
- 12 speed
- 622 28H
- 26mm inner width
- 17mm height
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 12x142mm width rear hub
- 28 spoke holes
- Centerlock
- including removable lever
- 6/4mm allen key
- RaceGuard TLR
- 700x45C
- CN S200
- 27.2mm diameter
- 0mm setback
- Carbon
- 25% recycled material
- V-mount
Sattelklemme MERIDA EXPERT
| Rahmengröße | XXS | XS | S | M | L | XL |
| Laufradgröße | 28" | 28" | 28" | 28" | 28" | 28" |
| ST Sitzrohrlänge (mm) | 410 | 440 | 470 | 500 | 530 | 560 |
| TT Oberrohrlänge (mm) | 530 | 550 | 565 | 580 | 600 | 620 |
| CS Hinterbaulänge (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| HTA Steuerrohrwinkel (°) | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| STA Sitzrohrwinkel effektiv (°) | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| BD Tretlagerabsenkung (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| HT Steuerrohrlänge (mm) | 110 | 130 | 150 | 170 | 190 | 210 |
| FL Gabeleinbaulänge (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| R Reach (mm) | 378 | 392 | 402 | 412 | 426 | 441 |
| S Stack (mm) | 549 | 570 | 588 | 607 | 626 | 645 |
| WB Radstand (mm) | 1031 | 1048 | 1065 | 1082 | 1104 | 1126 |
| SH Überstandshöhe (mm) | 707 | 734 | 771 | 798 | 825 | 852 |
