- material: carbon
- 700x32C max. wheelsize
- 100x12/ 142x12mm axle standard
- BB86,5 bottom bracket standard
Rahmengrössen XXS, XS, S, M, L, XL

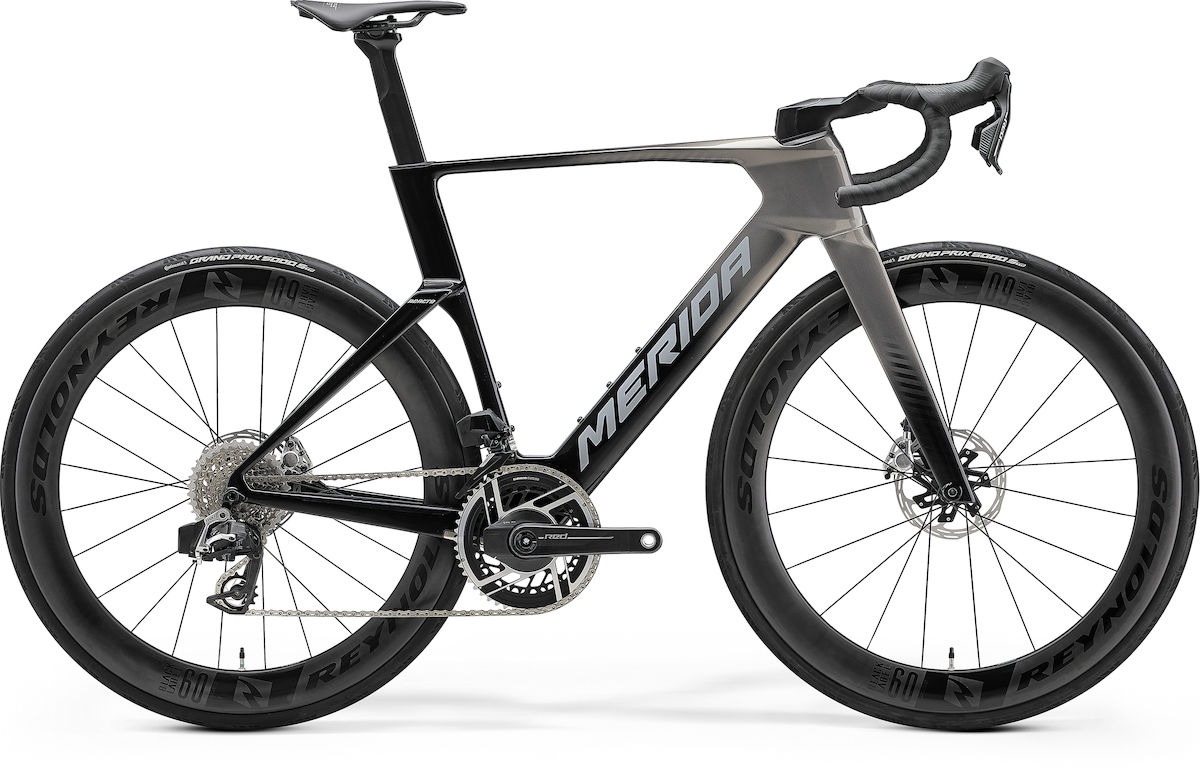

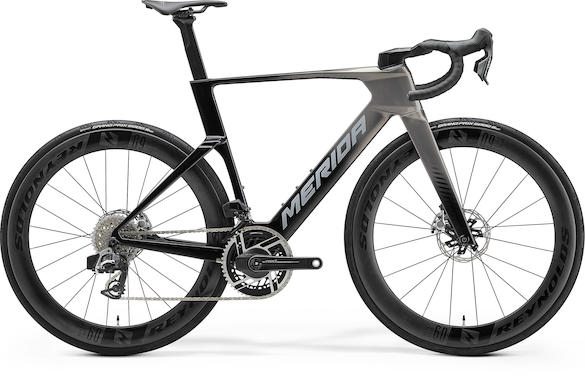

Farbe SLATE GREY/BLACK (SILVER)
- material: carbon
- 700x32C max. wheelsize
Schaltwerk Sram Red AXS
- 50-37 teeth
- Power Meter
- 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
- Hydraulic Disc
- Disc
- 160mm
Bremshebel Sram Red AXS HRD
- SL bearing (TH H2281 neck)
- Pressfit 86.5
Spacer MERIDA 2*10mm, 1*5mm
Griffe MERIDA ROAD EXPERT
- 10-36 teeth
- 12 speed
- 142x12mm width rear hub
- 21mm inner width
- 60mm height
- Centerlock
- Sram XDR
- material: carbon
- Tubeless ready (tubeless tape and valves included)
Felgenband included in wheelset
- including removable lever
- 6/4mm allen key
- 700x28C
- fold
- tubeless ready
- Flattop
Umwerfer Sram Red AXS
- Aero Shape
- 0mm setback
- material: Carbon
- Aero Shape
- 0mm setback
- material: Carbon
| Rahmengröße | XXS | XS | S | M | L | XL |
| Laufradgröße | 28" | 28" | 28" | 28" | 28" | 28" |
| ST Sitzrohrlänge (mm) | 470 | 500 | 520 | 540 | 560 | 590 |
| TT Oberrohrlänge (mm) | 521 | 535 | 545 | 560 | 575 | 590 |
| CS Hinterbaulänge (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| HTA Steuerrohrwinkel (°) | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
| STA Sitzrohrwinkel effektiv (°) | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| BD Tretlagerabsenkung (mm) | 70 | 70 | 66 | 66 | 66 | 66 |
| HT Steuerrohrlänge (mm) | 105 | 112 | 128 | 140 | 155 | 175 |
| FL Gabeleinbaulänge (mm) | 385 | 385 | 385 | 385 | 385 | 385 |
| Fo Fork Offset Mm | 45 | 45 | 45 | 45 | 45 | 45 |
| R Reach (mm) | 377 | 384 | 390 | 395 | 400 | 409 |
| S Stack (mm) | 517 | 529 | 542 | 557 | 571 | 593 |
| WB Radstand (mm) | 987 | 984 | 992 | 992 | 1002 | 1011 |
| SH Überstandshöhe (mm) | 746 | 771 | 792 | 810 | 826 | 853 |
| Str Stack To Reach Ratio Pc | 1,37 | 1,38 | 1,39 | 1,41 | 1,43 | 1,45 |
