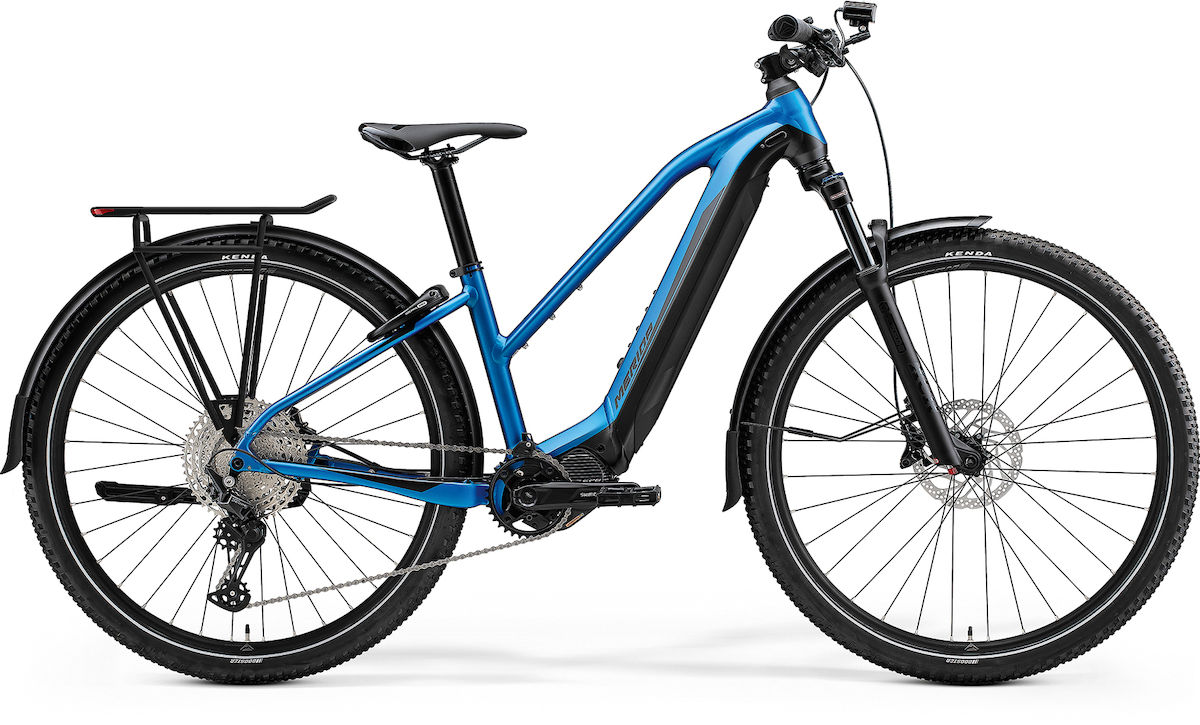

| Modell | eBIG.TOUR 600 EQ EP2 |
| Farbe | Blau/Schwarz |
| Rahmen | eBIG.TOUR LITE III- material: aluminium
|
| Motor | Shimano EP8- 85Nm |
| Display | Shimano SC-E5003 |
| Batterie | Shimano E8036- 630Wh |
| Ladegerät | Shimano EC-E6002- 2A charging current |
| (Feder-)gabel | Suntour XCR34 LOR DS- Air Boost
|
| Bremse (V/H) | Shimano M4100- 4 piston/2 piston |
| Bremsscheibe (V/H) | Shimano RT30/Shimano RTEM300- 180 mm |
| Kurbelgarnitur | Shimano CRE70-B- 34 teeth
|
| Gänge | 1 x 11 |
| Schalthebel hinten | Shimano Deore M5100 11 |
| Schaltwerk | Shimano Deore RDM5100 11 |
| Kassette | Shimano M5100- 11-51 teeth
|
| Kette | HG601-11 |
| Lenker | MERIDA EXPERT CC- material: aluminium
|
| Griffe | MERIDA EXPERT TK |
| Vorbau | MERIDA EXPERT CT- material: aluminium
|
| Steuersatz | MERIDA-8155 (for the steerer 1-1/8"~1.5") |
| Sattel | MERIDA EXPERT TK |
| Sattelstütze | MERIDA EXPERT CC- material: aluminium
|
| Reifen (V/H) | KENDA Booster- 29x2.2"
|
| Nabe (V/H) | Shimano MT400-B- 110x15mm width front hub
|
| Felge (V/H) | MERIDA COMP CC- 20mm inner width
|
| Innenlager | included |
| Pedale | VP VPE-537 |
| Scheinwerfer | LEZYNE E-BIKE POWER STVZO E115, X-Lock stem mount |
| Rücklicht | Spanninga Commuter GLOW XE |
| Gepäckträger | MERIDA MA008-1 w/spring clamp + Spanninga GLOW XE |
| Schutzbleche | Sunnywheel SW-FA311-65A/ SW-FA311-65E1 |
| Parkstütze | CL-KA98, 29" |
| Gewicht | 23,79 kgweighed with 29" wheels and at frame size S |
